Using Rich Presence with the Game SDK

The Game SDK has been archived.

We recommend using the Discord Social SDK for new projects.

Existing projects using the Game SDK will continue to work, but we encourage you to migrate to the Discord Social SDK for new features and updates.

The Game SDK helps you build 3rd party games and integrate them with Discord. One of its specialties is making it easy to bring your game’s data to Discord using Rich Presence, which this guide will cover.

Before we dig in, make sure you’ve gone through the guide on Getting Started with the Game SDK. This guide expects that you’ve already downloaded the SDK, configured your app, and gotten up and running with a basic example.

Not sure if you should be building with the Game SDK? Read through Choosing an SDK to understand your options when integrating Rich Presence.

Understanding Rich Presence Data

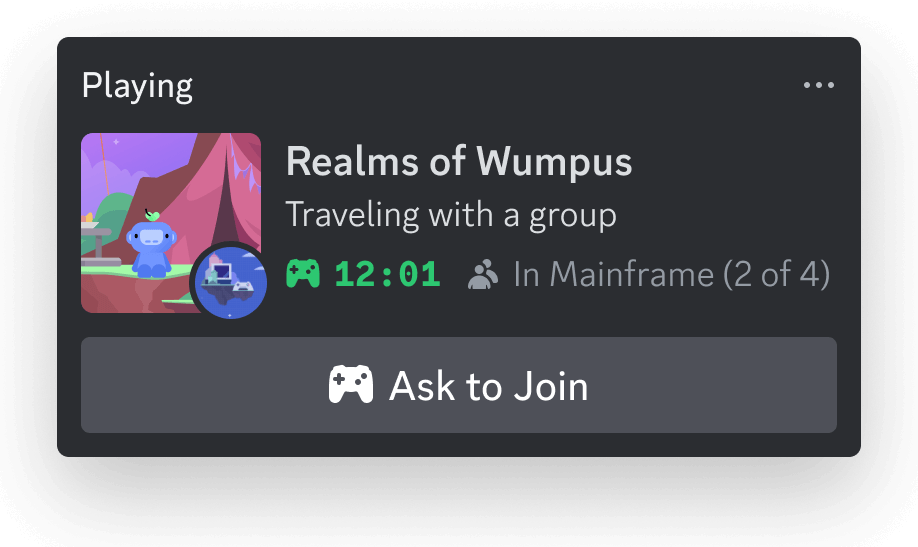

Before we dig in, it’s helpful to understand what Rich Presence data you can set when updating a user’s presence data. We’ll explain the specific fields below, but for now let’s just take a look at what we’re working with:

Table with text representation of the fields above

location	field name	notes
First row below title	details
Second row below title	state	If provided with no partySize or partyMax
First badge in last row below title	startTimestamp	Converted to a mm:ss format such as 12:01
Second badge in last row below title	state	If provided with a partySize and partyMax
Second badge in last row below title	partySize	In parenthesis next to the state, first number in the format (1 of 4)
Second badge in last row below title	partyMax	In parenthesis next to the state, second number in the format (1 of 4)
Button at the bottom	joinSecret	Button has the text Ask to Join
Large image to the left of any content	largeImageKey	Four rows high, includes the title but not the bottom buttons
Small image to the left of any content	smallImageKey	Small icon inset on the bottom right of the largeImageKey

Note that this layout may be subject to change without warning. This information is only provided to help those with impaired eyesight to understand the potential layout of this information in a user interface.

For tips on designing Rich Presence, take a look at the Rich Presence best practices guide.

Activities Manager

As you likely learned when setting up your app, the Game SDK has a handful of specialized manager classes. The ActivitiesManager is responsible for integrating Rich Presence and sending invites, so that’s where we’ll spend our focus in this guide.

Like other Game SDK managers, the ActivitiesManager class has a handful of functions and events that are used when building Rich Presence support. We’ll touch on the ones important to presence below.

Fetching Activity Manager

In your code, you’ll need to fetch the ActivityManager to call its functions and listen to events. In your code, you can call the GetActivityManager() function:

var activityManager = discord.GetActivityManager();

Updating Presence

The most important function when integrating Rich Presence using the Game SDK will be UpdateActivity(). This is how you will send your game data to Discord to update a user’s presence data. You should call UpdateActivity() any time something important in the presence payload changes.

UpdateActivity Fields

When calling UpdateActivity(), you’ll be expected to pass the activity fields besides your ApplicationId and Name (which are both read-only).

Partial Activity Struct

Below are the fields we’ll be paying attention to as we’re passing presence data for a user.

All fields are optional and nullable

Name	Type	Description
State	string	the player’s current party status
Details	string	what the player is currently doing
Timestamps	ActivityTimestamps	helps create elapsed/remaining timestamps on a player’s profile
Assets	ActivityAssets	assets to display on the player’s profile
Party	ActivityParty	information about the player’s party
Secrets	ActivitySecrets	secret passwords for joining the player’s game
Instance	bool	whether this activity is an instanced context, like a match

UpdateActivity Example

Now let’s take a look at a code example for updating presence data.

All of the code samples in this guide are in C#, but there are some similar examples in other languages on GitHub.

Our code sample in this section is based on the data from the example from before:

The Ask to Join button will be covered more in the following sections, but if you don’t want it included, you can remove the Party and Secret fields.

Example calling UpdateActivity function

The following example only focuses on using UpdateActivity(). You can read the Getting Started and Using the SDK sections for more general information about using the Game SDK.

var activity = new Discord.Activity
{
  State = "In Group",
  Details = "In 3v3 Arena | 0-2 | Bo5",
  Timestamps =
  {
      Start = 1723218695,
  },
  Assets =
  {
      LargeImage = "map-woods", // using asset from app's settings
      LargeText = "Playing in the Misty Woods",
      SmallImage = "https://example.com/battlerite/users/example-user.jpg", // you can also use URLs
      SmallText = "Example User",
  },
  Party =
  {
      Id = "party-abc123",
      Size = {
          CurrentSize = 3,
          MaxSize = 3,
      },
  },
  Secrets =
  {
      Join = "foo joinSecret",
  },
  Instance = true,

};

activityManager.UpdateActivity(activity, (result) =>
{
    if (result == Discord.Result.Ok)
    {
        Console.WriteLine("Success!");
    }
    else
    {
        Console.WriteLine("Failed");
    }
});

Asking to Join

In the example above, there was an Ask to Join button that a user could click to ask to join a game match directly from Discord.

Adding the Ask to Join Button

To get the Ask to Join button to appear under the presence data for a 3rd party game, you should send along a few fields: ActivityParty.Id, ActivityParty.Size.CurrentSize, ActivityParty.Size.MaxSize, and ActivitySecrets.Join.

To see what you need for each Rich Presence feature, you can view the Activity Action Field Requirements table.

Handling Ask to Join

To listen for when someone clicks the button, you’ll use the OnActivityJoinRequest event. This will include a user for the individual that clicked the button.

As an example, let’s say we updated Player A’s presence data, and Player B found the Ask to Join button on their profile and proceeded to click it. At that point, your app will receive an OnActivityJoinRequest. Your game should surface this to Player A to confirm they wish to play with Player B.

After you confirm that Player A is game, you will call SendRequestReply with Player B’s userId and a reply field with an ActivityJoinRequestReply value.

Example Listening to Ask to Join Request

activityManager.OnActivityJoinRequest += user =>
{
    Console.WriteLine("Join request from: {0}", user.Id);
    activityManager.SendRequestReply(user.Id, Discord.ActivityJoinRequestReply.Yes, (res) =>
    {
      if (res == Discord.Result.Ok)
      {
        Console.WriteLine("Responded successfully");
      }
    });
}

The Ask to Join request persists for 30 seconds after the request is received. Therefore, keep these two points in mind:

• Ensure you call RunCallbacks() as frequently as possible to ensure your game client is up to date with any data from Discord
• If the player is in a state in which they cannot interact with an Ask to Join request—like in the middle of a match—you should not send ActivitySecrets.Join in the presence payload

Secrets

Security is of the utmost importance to us here at Discord, and we know it is for you, too. That’s why we want to make sure that you properly understand ActivitySecrets.Join so that your game data is safe and secure over the wire.

To keep security on the up and up, Discord requires that you properly hash/encode/encrypt/put-a-padlock-on-and-swallow-the-key-but-wait-then-how-would-you-open-it your secrets.

Secrets are obfuscated data of your choosing. They could be match ids, player ids, lobby ids, etc. You should send us data that someone else’s game client would need to join their friend. If you can’t or don’t want to support those actions, you don’t need to send us secrets.

FAQ

Below are answers to some common questions about integrating Rich Presence with your 3rd party game.

Q: I see “Playing MyGame”, but no Rich Presence data.

There’s a couple things that could be going on:

• If you’re running two instances of the Discord client, check both!
• Double check that your Discord_Initialize() function is correct.

Throughout development, make sure you have your errored() and disconnected() callbacks hooked up for debugging. You can open up the console in Discord and look for errors pertaining to SET_ACTIVITY for more information as well.

Q: What happens if someone has more than one game running that supports Rich Presence?

The application that connected first is displayed.

However, invite functionality across multiple connected applications now works no matter which app is display on a user’s profile. For example, if you are hosting a Spotify listening party and playing Game A that allows you to send Ask to Join invites, you’ll be able to send invites to both simultaneously!

Q: What if someone looking at my profile or an invite doesn’t own the game?

Anyone can see your profile data, whether they own the game or not. They’ll only be able to interact with chat invites or profile buttons if they own the game and have launched it at least once. Otherwise, the invite/button tooltip will show “Game Not Detected”.

Q: Do join invitations allow players to select the number of open slots?

Currently, the SDK does not support this. Party slot information is determined by the party data you sent in your presence payload.

Q: Can I send images via the payload rather than uploading them to my app’s settings?

Yes! In addition to uploading an asset and specifying its name, you can also specify an external image URL for us to proxy. For more information, see Activity Asset Image.

Q: OK—I’ve got it working! Now, how do I make my integration look awesome?

I’m happy we preempted your question you asked! Check out our Rich Presence Best Practices guide for a rundown on how to make your integration the best that it can be!
