This document serves as a comprehensive reference for all available components. It covers three main categories:

Layout Components - For organizing and structuring content (Action Rows, Sections, Containers)
Content Components - For displaying static text, images, and files (Text Display, Media Gallery, Thumbnails)
Interactive Components - For user interactions (Buttons, Select Menus, Text Input)

To use these components, you need to send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be sent on a per-message basis. Once a message has been sent with this flag, it can’t be removed from that message. This enables the new components system with the following changes:

The content and embeds fields will no longer work but you’ll be able to use Text Display and Container as replacements
Attachments won’t show by default - they must be exposed through components
The poll and stickers fields are disabled
Messages allow up to 40 total components

Legacy component behavior will continue to work but provide less flexibility and control over the message layout.

For a practical guide on implementing these components, see our Using Message Components and Using Modal Components documentation.

What is a Component

Components allow you to style and structure your messages, modals, and interactions. They are interactive elements that can create rich user experiences in your Discord applications. Components are a field on the message object and modal. You can use them when creating messages or responding to an interaction, like an application command.

Component Object

Component Types

The following is a complete table of available components. Details about each component are in the sections below.

Type	Name	Description	Style	Usage
1	Action Row	Container to display a row of interactive components	Layout	Message
2	Button	Button object	Interactive	Message
3	String Select	Select menu for picking from defined text options	Interactive	Message, Modal
4	Text Input	Text input object	Interactive	Modal

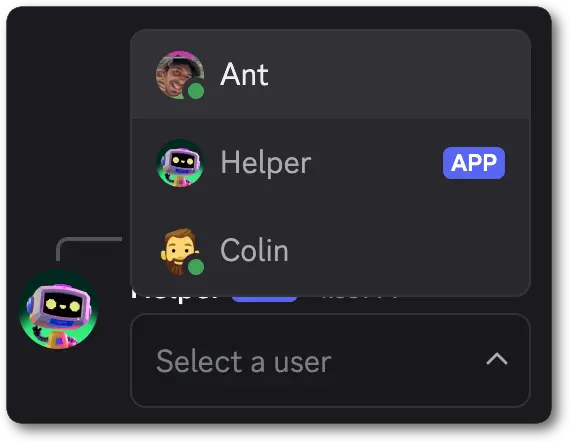

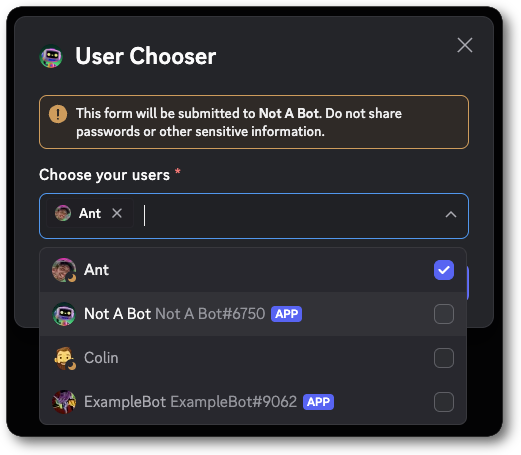

5	User Select	Select menu for users	Interactive	Message, Modal

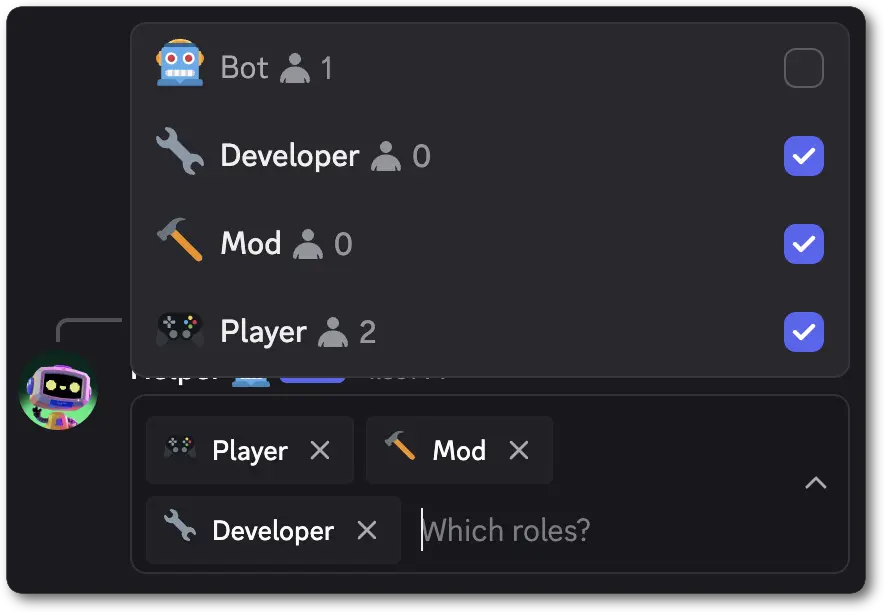

6	Role Select	Select menu for roles	Interactive	Message, Modal
7	Mentionable Select	Select menu for mentionables (users and roles)	Interactive	Message, Modal

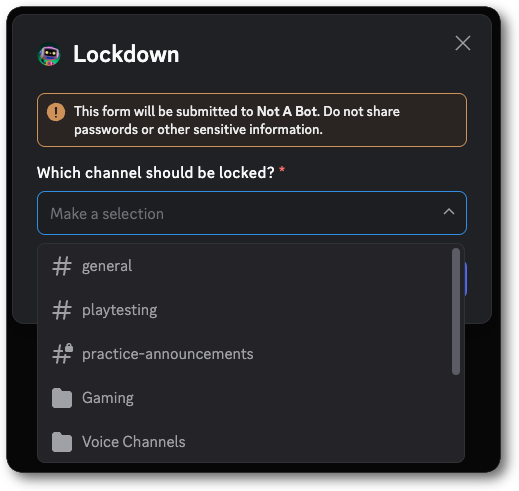

8	Channel Select	Select menu for channels	Interactive	Message, Modal
9	Section	Container to display text alongside an accessory component	Layout	Message

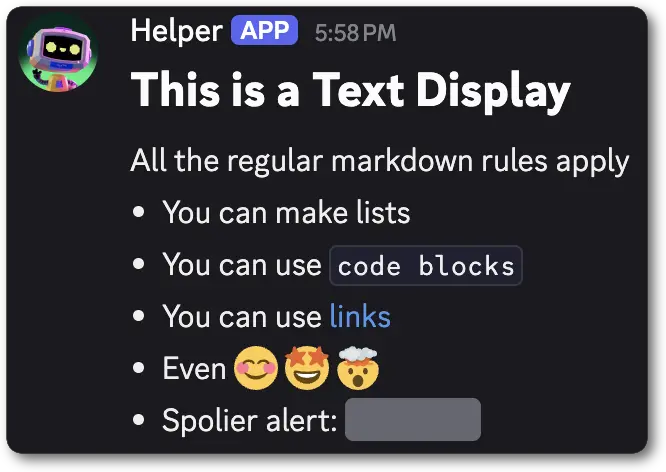

10	Text Display	Markdown text	Content	Message, Modal
11	Thumbnail	Small image that can be used as an accessory	Content	Message
12	Media Gallery	Display images and other media	Content	Message

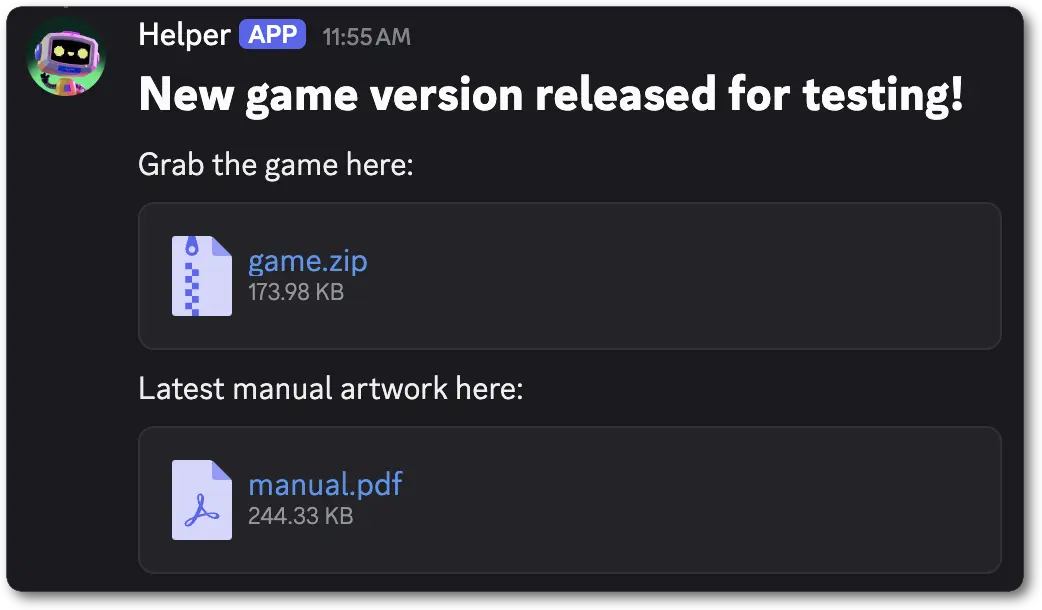

13	File	Displays an attached file	Content	Message
14	Separator	Component to add vertical padding between other components	Layout	Message
17	Container	Container that visually groups a set of components	Layout	Message
18	Label	Container associating a label and description with a component	Layout	Modal
19	File Upload	Component for uploading files	Interactive	Modal
21	Radio Group	Single-choice set of options	Interactive	Modal

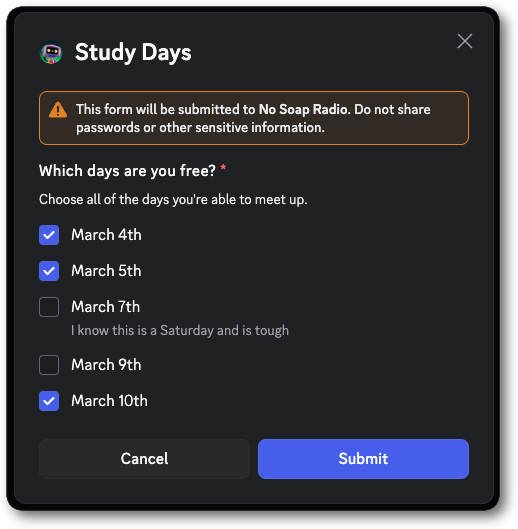

22	Checkbox Group	Multi-selectable group of checkboxes	Interactive	Modal
23	Checkbox	Single checkbox for yes/no choice	Interactive	Modal

Anatomy of a Component

All components have the following fields:

Field	Type	Description
type	integer	The type of the component
id?	integer	32 bit integer used as an optional identifier for component

The id field is optional and is used to identify components in the response from an interaction. The id must be unique within the message and is generated sequentially if left empty. Generation of ids won’t use another id that exists in the message if you have one defined for another component. Sending components with an id of 0 is allowed but will be treated as empty and replaced by the API.

Custom ID

Additionally, interactive components like buttons and selects must have a custom_id field. The developer defines this field when sending the component payload, and it is returned in the interaction payload sent when a user interacts with the component. For example, if you set custom_id: click_me on a button, you’ll receive an interaction containing custom_id: click_me when a user clicks that button. custom_id is only available on interactive components and must be unique per component. Multiple components on the same message must not share the same custom_id. This field is a string of 1 to 100 characters and can be used flexibly to maintain state or pass through other important data.

Field	Type	Description
custom_id	string	Developer-defined identifier, 1-100 characters

Action Row

An Action Row is a top-level layout component. Action Rows can contain one of the following:

Up to 5 contextually grouped buttons
A single select component (string select, user select, role select, mentionable select, or channel select)

Label is recommended for use over an Action Row in modals. Action Row with Text Inputs in modals are now deprecated.

Action Row Structure

Field	Type	Description
type	integer	`1` for action row component
id?	integer	Optional identifier for component
components	array of action row child components	Up to 5 interactive button components or a single select component

Action Row Child Components

Available Components	Description
Button	An Action Row can contain up to 5 Buttons
String Select	A single String Select
User Select	A single User Select
Role Select	A single Role Select
Mentionable Select	A single Mentionable Select
Channel Select	A single Channel Select

Examples

Message Example

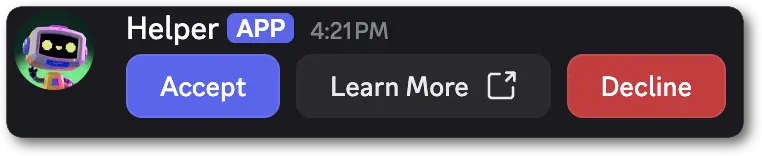

Message create payload with an Action Row component

{
  "flags": 32768,
  "components": [
    {
      "type": 1,  // ComponentType.ACTION_ROW
      "components": [
        {
          "type": 2,  // ComponentType.BUTTON
          "custom_id": "click_yes",
          "label": "Accept",
          "style": 1
        },
        {
          "type": 2,  // ComponentType.BUTTON
          "label": "Learn More",
          "style": 5,
          "url": "http://watchanimeattheoffice.com/"
        },
        {
          "type": 2,  // ComponentType.BUTTON
          "custom_id": "click_no",
          "label": "Decline",
          "style": 4
        }
      ]
    }
  ]
}

Button

A Button is an interactive component that can only be used in messages. It creates clickable elements that users can interact with, sending an interaction to your app when clicked. Buttons must be placed inside an Action Row or a Section’s accessory field.

Button Structure

Field	Type	Description
type	integer	`2` for a button
id?	integer	Optional identifier for component
style	integer	A button style
label?	string	Text that appears on the button; max 80 characters
emoji?	partial emoji	`name`, `id`, and `animated`
custom_id?	string	Developer-defined identifier for the button; 1-100 characters
sku_id?	snowflake	Identifier for a purchasable SKU, only available when using premium-style buttons
url?	string	URL for link-style buttons; max 512 characters
disabled?	boolean	Whether the button is disabled (defaults to `false`)

Buttons come in various styles to convey different types of actions. These styles also define what fields are valid for a button.

Non-link and non-premium buttons must have a custom_id, and cannot have a url or a sku_id.
Link buttons must have a url, and cannot have a custom_id
Link buttons do not send an interaction to your app when clicked
Premium buttons must contain a sku_id, and cannot have a custom_id, label, url, or emoji.
Premium buttons do not send an interaction to your app when clicked

Button Styles

Name	Value	Action	Required Field
Primary	1	The most important or recommended action in a group of options	`custom_id`
Secondary	2	Alternative or supporting actions	`custom_id`
Success	3	Positive confirmation or completion actions	`custom_id`
Danger	4	An action with irreversible consequences	`custom_id`
Link	5	Navigates to a URL	`url`
Premium	6	Purchase	`sku_id`

Examples

Message Example

Message create payload with a Button component

{
  "flags": 32768,
  "components": [
    {
      "type": 1,  // ComponentType.ACTION_ROW
      "components": [
          {
            "type": 2,  // ComponentType.BUTTON,
            "custom_id": "click_me",
            "label": "Click me!",
            "style": 1
          }
      ]
    }
  ]
}

Message Interaction Response Example

When a user interacts with a Button in a message

When a user interacts with a Button in a message, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 3, // InteractionType.MESSAGE_COMPONENT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "component_type": 2, // ComponentType.BUTTON
    "id": 2,
    "custom_id": "click_me",
  },
}

Button Design Guidelines

General Button Content

34 characters max with icon or emoji.
38 characters max without icon or emoji.
Keep text concise and to the point.
Use clear and easily understandable language. Avoid jargon or overly technical terms.
Use verbs that indicate the outcome of the action.
Maintain consistency in language and tone across buttons.
Anticipate the need for translation and test for expansion or contraction in different languages.

Multiple Buttons

Use different button styles to create a hierarchy. Use only one Primary button per group.

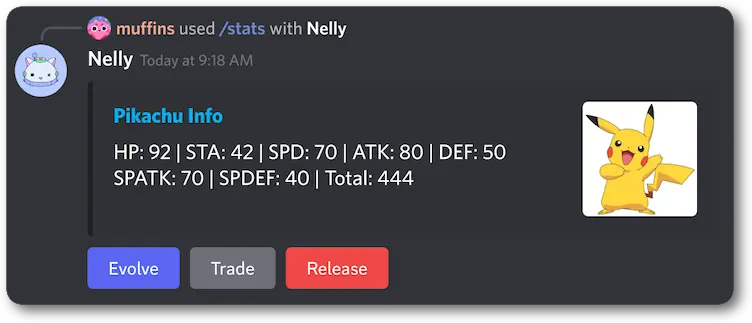

Example showing one primary button per button group

If there are multiple buttons of equal significance, use the Secondary button style for all buttons.

Example showing multiple buttons in a group with equal significance

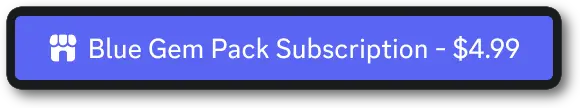

Premium Buttons

Premium buttons will automatically have the following:

Shop Icon
SKU name
SKU price

String Select

A String Select is an interactive component that allows users to select one or more provided options. String Selects can be configured for both single-select and multi-select behavior. When a user finishes making their choice(s) your app receives an interaction. String Selects are available in messages and modals. They must be placed inside an Action Row in messages and a Label in modals.

String Select Structure

Field	Type	Description
type	integer	`3` for string select
id?	integer	Optional identifier for component
custom_id	string	ID for the select menu; 1-100 characters
options	array of select options	Specified choices in a select menu; max 25
placeholder?	string	Placeholder text if nothing is selected or default; max 150 characters
min_values?*	integer	Minimum number of items that must be chosen (defaults to 1); min 0 (see note), max 25
max_values?	integer	Maximum number of items that can be chosen (defaults to 1); max 25
required?**	boolean	Whether the string select is required to answer in a modal (defaults to `true`)
disabled?***	boolean	Whether select menu is disabled in a message (defaults to `false`)

* min_values must be either omitted or at least 1 if required is omitted or true. ** The required field is only available for String Selects in modals. It is ignored in messages. *** Using disabled in a modal will result in an error. Modals can not currently have disabled components in them.

Select Option Structure

Field	Type	Description
label	string	User-facing name of the option; max 100 characters
value	string	Dev-defined value of the option; max 100 characters
description?	string	Additional description of the option; max 100 characters
emoji?	partial emoji object	`id`, `name`, and `animated`
default?	boolean	Will show this option as selected by default

String Select Interaction Response Structure

Field	Type	Description
type*	integer	`3` for a String Select
component_type*	integer	`3` for a String Select
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
values	array of strings	The text of the selected options

* In message interaction responses component_type will be returned and in modal interaction responses type will be returned.

Examples

Message Example

Message create payload with a String Select component

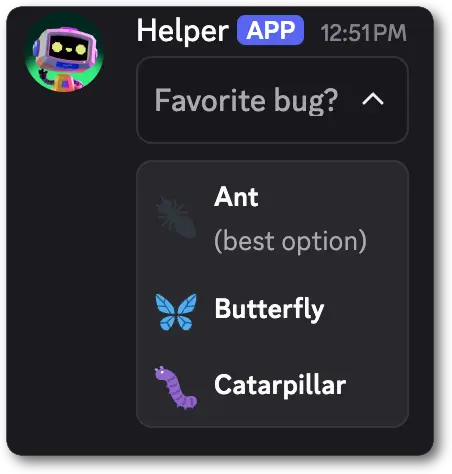

Example of a String Select with three options

{
  "flags": 32768,
  "components": [
    {
      "type": 1, // ComponentType.ACTION_ROW,
      "id": 1,
      "components": [
        {
          "type": 3, // ComponentType.STRING_SELECT
          "id": 2,
          "custom_id": "favorite_bug",
          "placeholder": "Favorite bug?",
          "options": [
            {
              "label": "Ant",
              "value": "ant",
              "description": "(best option)",
              "emoji": {"name": "🐜"}
            },
            {
              "label": "Butterfly",
              "value": "butterfly",
              "emoji": {"name": "🦋"}
            },
            {
              "label": "Caterpillar",
              "value": "caterpillar",
              "emoji": {"name": "🐛"}
            }
          ]
        }
      ]
    }
  ]
}

Message Interaction Data Example

When a user interacts with a StringSelect in a message

When a user interacts with a StringSelect in a message, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 3, // InteractionType.MESSAGE_COMPONENT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "component_type": 3, // ComponentType.STRING_SELECT
    "custom_id": "favorite_bug",
    "values": [
      "butterfly",
    ]
  },
}

Modal create payload with a String Select component

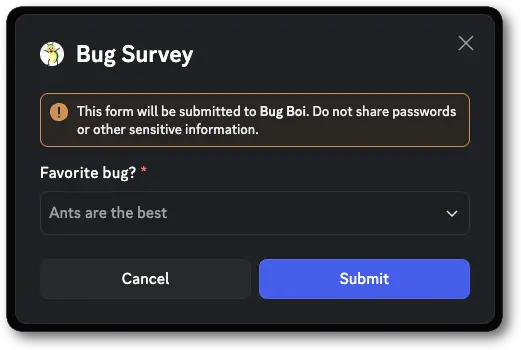

Example of a String Select with three options in a modal

{
  "type": 9, // InteractionCallbackType.MODAL
  "data": {
    "custom_id": "bug_modal",
    "title": "Bug Survey",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "id": 1,
        "label": "Favorite bug?",
        "component": {
          "type": 3, // ComponentType.STRING_SELECT
          "id": 2,
          "custom_id": "favorite_bug",
          "placeholder": "Ants are the best",
          "options": [
            {
              "label": "Ant",
              "value": "ant",
              "description": "(best option)",
              "emoji": {"name": "🐜"}
            },
            {
              "label": "Butterfly",
              "value": "butterfly",
              "emoji": {"name": "🦋"}
            },
            {
              "label": "Caterpillar",
              "value": "caterpillar",
              "emoji": {"name": "🐛"}
            }
          ]
        }
      }
    ]
  }
}

When a user submits a modal containing a String Select

When a user submits a modal that contains a String Select, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "bug_modal",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "id": 1,
        "component": {
          "type": 3, // ComponentType.STRING_SELECT
          "id": 2,
          "custom_id": "favorite_bug",
          "values": [
            "butterfly",
          ]
        }
      }
    ]
  },
}

Text Input

Text Input is an interactive component that allows users to enter free-form text responses in modals. It supports both short, single-line inputs and longer, multi-line paragraph inputs. Text Inputs can only be used within modals and must be placed inside a Label.

We no longer recommend using Text Input within an Action Row in modals. Going forward all Text Inputs should be placed inside a Label component.

Text Input Structure

Field	Type	Description
type	integer	`4` for a text input
id?	integer	Optional identifier for component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
style	integer	The Text Input Style
min_length?	integer	Minimum input length for a text input; min 0, max 4000
max_length?	integer	Maximum input length for a text input; min 1, max 4000
required?	boolean	Whether this component is required to be filled (defaults to `true`)
value?	string	Pre-filled value for this component; max 4000 characters
placeholder?	string	Custom placeholder text if the input is empty; max 100 characters

The label field on a Text Input is deprecated in favor of label and description on the Label component.

Text Input Styles

Name	Value	Description
Short	1	Single-line input
Paragraph	2	Multi-line input

Text Input Interaction Response Structure

Field	Type	Description
type	integer	`4` for a Text Input
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
value	string	The user’s input text

Examples

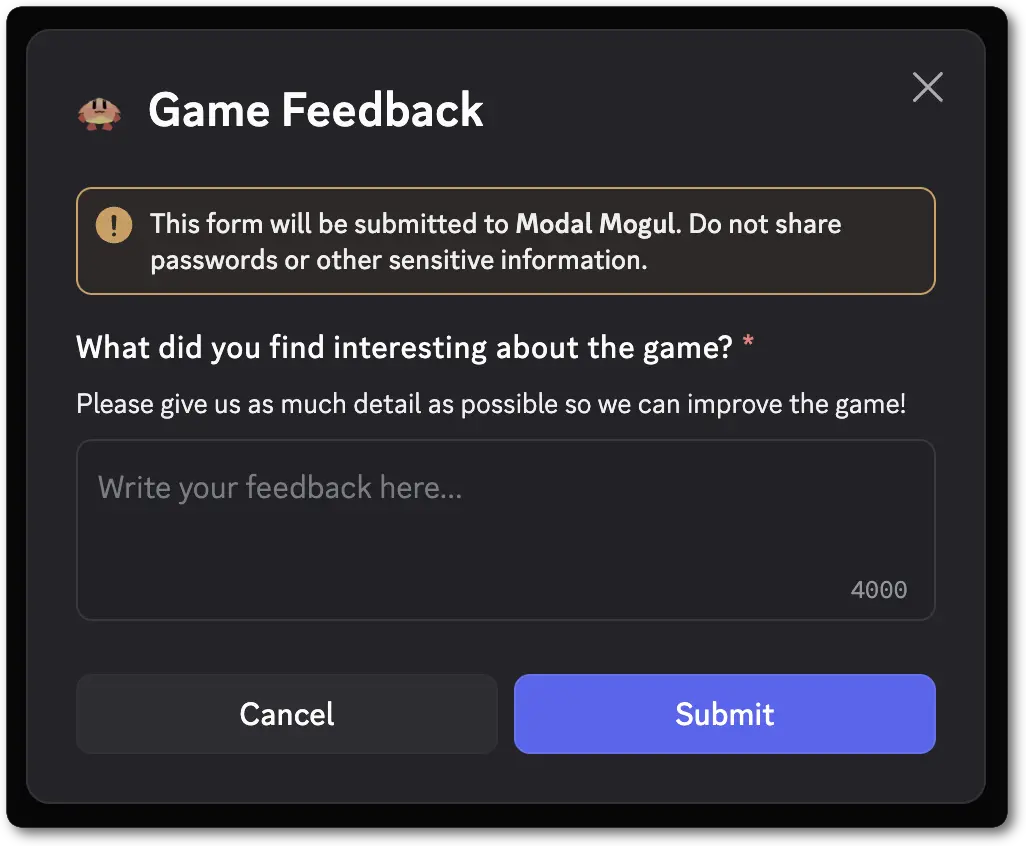

Modal create payload with a Text Input component

{
  "type": 9, // InteractionCallbackType.MODAL
  "data": {
    "custom_id": "game_feedback_modal",
    "title": "Game Feedback",
    "components": [
      {
        "type": 18,  // ComponentType.LABEL
        "label": "What did you find interesting about the game?",
        "description": "Please give us as much detail as possible so we can improve the game!",
        "component": {
          "type": 4,  // ComponentType.TEXT_INPUT
          "custom_id": "game_feedback",
          "style": 2,
          "min_length": 100,
          "max_length": 4000,
          "placeholder": "Write your feedback here...",
          "required": true
        }
      }
    ]
  }
}

When a user submits a modal containing a TextInput

When a user submits a modal that contains a TextInput, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "game_feedback_modal",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "id": 1,
        "component": {
          "type": 4, // ComponentType.TEXT_INPUT
          "id": 2,
          "custom_id": "game_feedback",
          "value": "The recent changes to acceleration feel much better, but shadows still need help"
        }
      }
    ]
  },
}

User Select

A User Select is an interactive component that allows users to select one or more users in a message or modal. Options are automatically populated based on the server’s available users. User Selects can be configured for both single-select and multi-select behavior. When a user finishes making their choice(s) your app receives an interaction. User Selects are available in messages and modals. They must be placed inside an Action Row in messages and a Label in modals.

User Select Structure

Field	Type	Description
type	integer	`5` for user select
id?	integer	Optional identifier for component
custom_id	string	ID for the select menu; 1-100 characters
placeholder?	string	Placeholder text if nothing is selected; max 150 characters
default_values?	array of default value objects	List of default values for auto-populated select menu components; number of default values must be in the range defined by `min_values` and `max_values`
min_values?*	integer	Minimum number of items that must be chosen (defaults to 1); min 0 (see note), max 25
max_values?	integer	Maximum number of items that can be chosen (defaults to 1); max 25
required?**	boolean	Whether the user select is required to answer in a modal (defaults to `true`)
disabled?***	boolean	Whether select menu is disabled in a message (defaults to `false`)

* min_values must be either omitted or at least 1 if required is omitted or true. ** The required field is only available for User Selects in modals. It is ignored in messages. *** Using disabled in a modal will result in an error. Modals can not currently have disabled components in them.

Select Default Value Structure

Field	Type	Description
id	snowflake	ID of a user, role, or channel
type	string	Type of value that `id` represents. Either `"user"`, `"role"`, or `"channel"`

User Select Interaction Response Structure

Field	Type	Description
type*	integer	`5` for a User Select
component_type*	integer	`5` for a User Select
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
resolved	resolved data	Resolved entities from selected options
values	array of snowflakes	IDs of the selected users

* In message interaction responses component_type will be returned and in modal interaction responses type will be returned.

Examples

Message Example

Message create payload with a User Select component

Example of a User Select with two people and an app in a server

{
  "flags": 32768,
  "components": [
    {
      "type": 1,  // ComponentType.ACTION_ROW
      "components": [
        {
          "type": 5,  // ComponentType.USER_SELECT
          "custom_id": "user_select",
          "placeholder": "Select a user"
        }
      ]
    }
  ]
}

Message Interaction Data Example

When a user interacts with a User Select in a message

When a user interacts with a User Select in a message, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

members and users may both be present in the resolved object when a user is selected.

{
  "type": 3, // InteractionType.MESSAGE_COMPONENT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "component_type": 5, // ComponentType.USER_SELECT
    "id": 2,
    "custom_id": "user_select",
    "values": [
      "1111111111111111111",
    ],
    "resolved": {
      "members": {
        "1111111111111111111": {
          "avatar": null,
          "banner": null,
          "collectibles": null,
          "communication_disabled_until": null,
          "flags": 0,
          "joined_at": "2025-05-16T22:51:16.692000+00:00",
          "nick": null,
          "pending": false,
          "permissions": "2248473465835073",
          "premium_since": null,
          "roles": [
            "2222222222222222222"
          ],
          "unusual_dm_activity_until": null
        }
      },
      "users": {
        "1111111111111111111": {
          "avatar": "d54e87d20539fe9aad2f2cebe56809a2",
          "avatar_decoration_data": null,
          "bot": true,
          "clan": null,
          "collectibles": null,
          "discriminator": "9062",
          "display_name_styles": null,
          "global_name": null,
          "id": "1111111111111111111",
          "primary_guild": null,
          "public_flags": 524289,
          "username": "ExampleBot"
        }
      }
    }
  },
}

Modal create payload with a User Select component

{
  "type": 9,
  "data": {
    "custom_id": "user_modal",
    "title": "User Chooser",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "label": "Choose your users",
        "component": {
          "type": 5, // ComponentType.USER_SELECT
          "custom_id": "user_selected",
          "max_values": 5,
          "required": true
        }
      }
    ]
  }
}

When a user submits a modal containing a User Select

When a user submits a modal that contains a User Select, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "user_modal",
    "components": [
      {
        "component": {
          "custom_id": "user_selected",
          "id": 2,
          "type": 5,
          "values": [
            "11111111111111111"
          ]
        },
        "id": 1,
        "type": 18
      }
    ],
    "resolved": {
      "members": {
        "11111111111111111": {
          "avatar": null,
          "banner": null,
          "collectibles": null,
          "communication_disabled_until": null,
          "flags": 0,
          "joined_at": "2025-04-02T23:07:21.476000+00:00",
          "nick": "Ant",
          "pending": false,
          "permissions": "4503599627370495",
          "premium_since": null,
          "roles": [
            "1357409927680889032"
          ],
          "unusual_dm_activity_until": null
        }
      },
      "users": {
        "11111111111111111": {
          "avatar": "a_b15bd8ee42e3c3d9a7de129fee60bc84",
          "avatar_decoration_data": null,
          "clan": null,
          "collectibles": {
            "nameplate": {
              "asset": "nameplates/spell/white_mana/",
              "expires_at": null,
              "label": "COLLECTIBLES_SPELL_WHITE_MANA_NP_A11Y",
              "palette": "bubble_gum",
              "sku_id": "1379220459203072050"
            }
          },
          "discriminator": "0",
          "display_name_styles": {
            "colors": [
              16777215
            ],
            "effect_id": 4,
            "font_id": 3
          },
          "global_name": "Anthony",
          "id": "11111111111111111",
          "primary_guild": null,
          "public_flags": 65,
          "username": "actuallyanthony"
        }
      }
    }
  }
}

Role Select

A Role Select is an interactive component that allows users to select one or more roles in a message or modal. Options are automatically populated based on the server’s available roles. Role Selects can be configured for both single-select and multi-select behavior. When a user finishes making their choice(s) your app receives an interaction. Role Selects are available in messages and modals. They must be placed inside an Action Row in messages and a Label in modals.

Role Select Structure

Field	Type	Description
type	integer	`6` for role select
id?	integer	Optional identifier for component
custom_id	string	ID for the select menu; 1-100 characters
placeholder?	string	Placeholder text if nothing is selected; max 150 characters
default_values?	array of default value objects	List of default values for auto-populated select menu components; number of default values must be in the range defined by `min_values` and `max_values`
min_values?*	integer	Minimum number of items that must be chosen (defaults to 1); min 0 (see note), max 25
max_values?	integer	Maximum number of items that can be chosen (defaults to 1); max 25
required?**	boolean	Whether the role select is required to answer in a modal (defaults to `true`)
disabled?***	boolean	Whether select menu is disabled in a message (defaults to `false`)

* min_values must be either omitted or at least 1 if required is omitted or true. ** The required field is only available for Role Selects in modals. It is ignored in messages. *** Using disabled in a modal will result in an error. Modals can not currently have disabled components in them.

Role Select Interaction Response Structure

Field	Type	Description
type*	integer	`6` for a Role Select
component_type*	integer	`6` for a Role Select
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
resolved	resolved data	Resolved entities from selected options
values	array of snowflakes	IDs of the selected roles

* In message interaction responses component_type will be returned and in modal interaction responses type will be returned.

Examples

Message Example

Message create payload with a Role Select component

Example of a Role Select allowing up to 3 choices

{
  "flags": 32768,
  "components": [
    {
      "type": 1,  // ComponentType.ACTION_ROW
      "components": [
        {
          "type": 6,  // ComponentType.ROLE_SELECT
          "custom_id": "role_ids",
          "placeholder": "Which roles?",
          "min_values": 1,
          "max_values": 3
        }
      ]
    }
  ]
}

Message Interaction Data Example

When a user interacts with a Role Select in a message

When a user interacts with a Role Select in a message, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 3, // InteractionType.MESSAGE_COMPONENT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "component_type": 6, // ComponentType.ROLE_SELECT
    "id": 2,
    "custom_id": "role_ids",
    "values": [
      "222222222222222222",
    ],
    "resolved": {
      "roles": {
        "222222222222222222": {
          "color": 12745742,
          "colors": {
            "primary_color": 12745742,
            "secondary_color": null,
            "tertiary_color": null
          },
          "description": null,
          "flags": 0,
          "hoist": false,
          "icon": null,
          "id": "222222222222222222",
          "managed": false,
          "mentionable": true,
          "name": "Developer",
          "permissions": "0",
          "position": 2,
          "unicode_emoji": "🔧"
        }
      }
    }
  },
}

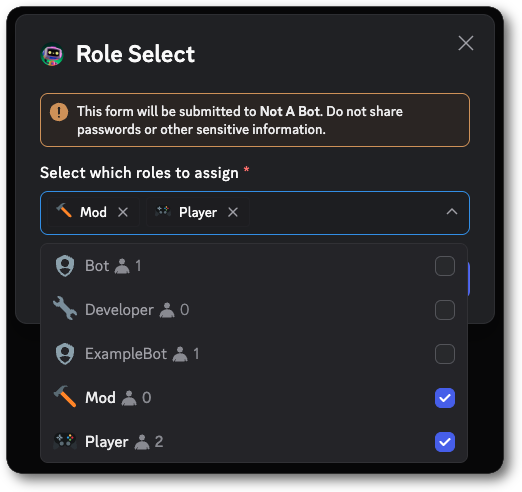

Modal create payload with a Role Select component

{
  "type": 9,
  "data": {
    "custom_id": "role_modal",
    "title": "Role Select",
    "components": [
      {
        "type": 18,
        "label": "Select which roles to assign",
        "component": {
          "type": 6,
          "custom_id": "roles_selected",
          "max_values": 10,
          "required": true
        }
      }
    ]
  }
}

When a user submits a modal containing a Role Select

When a user submits a modal that contains a Role Select, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "role_modal",
    "components": [
      {
        "component": {
          "custom_id": "roles_selected",
          "id": 2,
          "type": 6,
          "values": [
            "1362213912946147499",
            "1357409927680889032"
          ]
        },
        "id": 1,
        "type": 18
      }
    ],
    "resolved": {
      "roles": {
        "1357409927680889032": {
          "color": 7419530,
          "colors": {
            "primary_color": 7419530,
            "secondary_color": null,
            "tertiary_color": null
          },
          "description": null,
          "flags": 0,
          "hoist": true,
          "icon": null,
          "id": "1357409927680889032",
          "managed": false,
          "mentionable": true,
          "name": "Player",
          "permissions": "2249596494938111",
          "position": 3,
          "unicode_emoji": "🎮"
        },
        "1362213912946147499": {
          "color": 11342935,
          "colors": {
            "primary_color": 11342935,
            "secondary_color": null,
            "tertiary_color": null
          },
          "description": null,
          "flags": 0,
          "hoist": false,
          "icon": null,
          "id": "1362213912946147499",
          "managed": false,
          "mentionable": false,
          "name": "Mod",
          "permissions": "0",
          "position": 1,
          "unicode_emoji": "🔨"
        }
      }
    }
  }
}

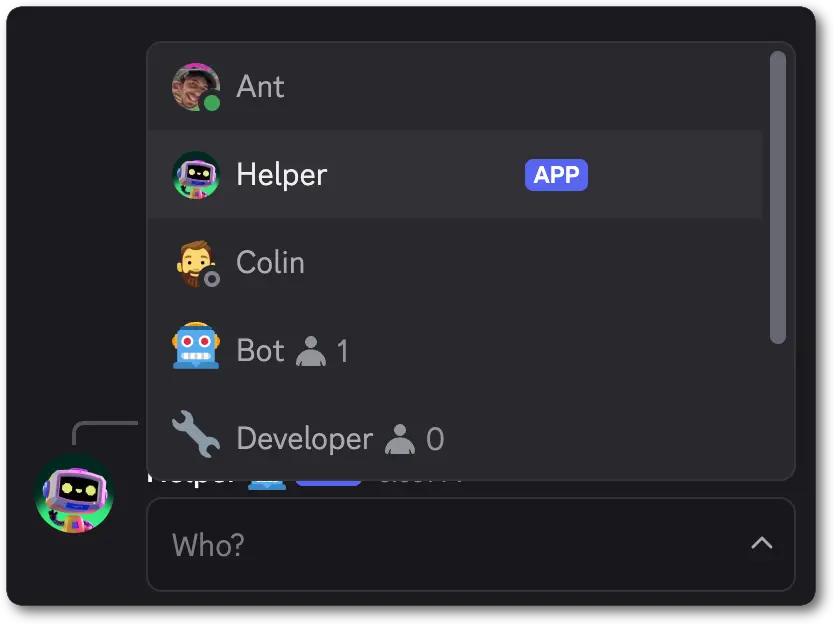

Mentionable Select

A Mentionable Select is an interactive component that allows users to select one or more mentionables in a message or modal. Options are automatically populated based on available mentionables in the server. Mentionable Selects can be configured for both single-select and multi-select behavior. When a user finishes making their choice(s), your app receives an interaction. Mentionable Selects are available in messages and modals. They must be placed inside an Action Row in messages and a Label in modals.

Mentionable Select Structure

Field	Type	Description
type	integer	`7` for mentionable select
id?	integer	Optional identifier for component
custom_id	string	ID for the select menu; 1-100 characters
placeholder?	string	Placeholder text if nothing is selected; max 150 characters
default_values?	array of default value objects	List of default values for auto-populated select menu components; number of default values must be in the range defined by `min_values` and `max_values`
min_values?*	integer	Minimum number of items that must be chosen (defaults to 1); min 0 (see note), max 25
max_values?	integer	Maximum number of items that can be chosen (defaults to 1); max 25
required?**	boolean	Whether the mentionable select is required to answer in a modal (defaults to `true`)
disabled?***	boolean	Whether select menu is disabled in a message (defaults to `false`)

* min_values must be either omitted or at least 1 if required is omitted or true. ** The required field is only available for Mentionable Selects in modals. It is ignored in messages. *** Using disabled in a modal will result in an error. Modals can not currently have disabled components in them.

Mentionable Select Interaction Response Structure

Field	Type	Description
type*	integer	`7` for a Mentionable Select
component_type*	integer	`7` for a Mentionable Select
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
resolved	resolved data	Resolved entities from selected options
values	array of snowflakes	IDs of the selected mentionables

* In message interaction responses component_type will be returned and in modal interaction responses type will be returned.

Examples

Message Example

Message create payload with a Mentionable Select component

Example of a Mentionable Select from the code below

{
  "flags": 32768,
  "components": [
    {
      "type": 1,  // ComponentType.ACTION_ROW
      "components": [
        {
          "type": 7, // ComponentType.MENTIONABLE_SELECT
          "custom_id": "who_to_ping",
          "placeholder": "Who?",
        }
      ]
    }
  ]
}

Message Interaction Data Example

When a user interacts with a Mentionable Select in a message

When a user interacts with a Mentionable Select in a message, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

members and users may both be present in the resolved object when a user is selected.

{
  "type": 3, // InteractionType.MESSAGE_COMPONENT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "component_type": 7, // ComponentType.MENTIONABLE_SELECT
    "id": 2,
    "custom_id": "who_to_ping",
    "values": [
      "111111111111111111",
      "222222222222222222",
    ],
    "resolved": {
      "members": {
        "1111111111111111111": {
          "avatar": null,
          "banner": null,
          "collectibles": null,
          "communication_disabled_until": null,
          "flags": 0,
          "joined_at": "2025-05-16T22:51:16.692000+00:00",
          "nick": null,
          "pending": false,
          "permissions": "2248473465835073",
          "premium_since": null,
          "roles": [
            "2222222222222222222"
          ],
          "unusual_dm_activity_until": null
        }
      },
      "users": {
        "1111111111111111111": {
          "avatar": "d54e87d20539fe9aad2f2cebe56809a2",
          "avatar_decoration_data": null,
          "bot": true,
          "clan": null,
          "collectibles": null,
          "discriminator": "9062",
          "display_name_styles": null,
          "global_name": null,
          "id": "1111111111111111111",
          "primary_guild": null,
          "public_flags": 524289,
          "username": "ExampleBot"
        }
      },
      "roles": {
        "222222222222222222": {
          "color": 12745742,
          "colors": {
            "primary_color": 12745742,
            "secondary_color": null,
            "tertiary_color": null
          },
          "description": null,
          "flags": 0,
          "hoist": false,
          "icon": null,
          "id": "222222222222222222",
          "managed": false,
          "mentionable": true,
          "name": "Developer",
          "permissions": "0",
          "position": 2,
          "unicode_emoji": "🔧"
        }
      }
    }
  },
}

Modal create payload with a Mentionable Select component

{
  "type": 9,
  "data": {
    "custom_id": "mentionable_modal",
    "title": "Unmentionables",
    "components": [
      {
        "type": 18,
        "label": "Who gets mentioned?",
        "component": {
          "type": 7,
          "custom_id": "mentionables_selected",
          "required": true
        }
      }
    ]
  }
}

When a user submits a modal containing a Mentionable Select

When a user submits a modal that contains a Mentionable Select, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "mentionable_modal",
    "components": [
      {
        "component": {
          "custom_id": "mentionables_selected",
          "id": 2,
          "type": 7,
          "values": [
            "1361539726405926952"
          ]
        },
        "id": 1,
        "type": 18
      }
    ],
    "resolved": {
      "roles": {
        "1361539726405926952": {
          "color": 12745742,
          "colors": {
            "primary_color": 12745742,
            "secondary_color": null,
            "tertiary_color": null
          },
          "description": null,
          "flags": 0,
          "hoist": false,
          "icon": null,
          "id": "1361539726405926952",
          "managed": false,
          "mentionable": true,
          "name": "Developer",
          "permissions": "0",
          "position": 2,
          "unicode_emoji": "🔧"
        }
      }
    }
  }
}

Channel Select

A Channel Select is an interactive component that allows users to select one or more channels in a message or modal. Options are automatically populated based on available channels in the server and can be filtered by channel types. Channel Selects can be configured for both single-select and multi-select behavior. When a user finishes making their choice(s) your app receives an interaction. Channel Selects are available in messages and modals. They must be placed inside an Action Row in messages and a Label in modals.

Channel Select Structure

Field	Type	Description
type	integer	`8` for channel select
id?	integer	Optional identifier for component
custom_id	string	ID for the select menu; 1-100 characters
channel_types?	array of channel types	List of channel types to include in the channel select component
placeholder?	string	Placeholder text if nothing is selected; max 150 characters
default_values?	array of default value objects	List of default values for auto-populated select menu components; number of default values must be in the range defined by `min_values` and `max_values`
min_values?*	integer	Minimum number of items that must be chosen (defaults to 1); min 0 (see note), max 25
max_values?	integer	Maximum number of items that can be chosen (defaults to 1); max 25
required?**	boolean	Whether the channel select is required to answer in a modal (defaults to `true`)
disabled?***	boolean	Whether select menu is disabled in a message (defaults to `false`)

* min_values must be either omitted or at least 1 if required is omitted or true. ** The required field is only available for Channel Selects in modals. It is ignored in messages. *** Using disabled in a modal will result in an error. Modals can not currently have disabled components in them.

Channel Select Interaction Response Structure

Field	Type	Description
type*	integer	`8` for a Channel Select
component_type*	integer	`8` for a Channel Select
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
resolved	resolved data	Resolved entities from selected options
values	array of snowflakes	IDs of the selected channels

* In message interaction responses component_type will be returned and in modal interaction responses type will be returned.

Examples

Message Example

Message create payload with a Channel Select component

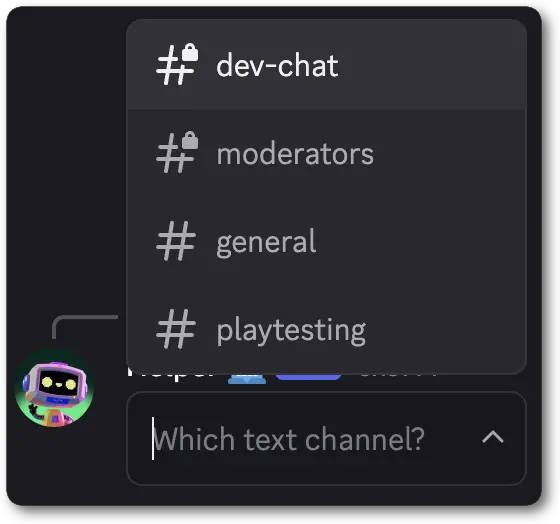

Example of a Channel Select for text channels

{
  "flags": 32768,
  "components": [
    {
      "type": 1,  // ComponentType.ACTION_ROW
      "components": [
        {
          "type": 8,  // ComponentType.CHANNEL_SELECT
          "custom_id": "notification_channel",
          "channel_types": [0],  // ChannelType.TEXT
          "placeholder": "Which text channel?"
        }
      ]
    }
  ]
}

Message Interaction Data Example

When a user interacts with a Channel Select in a message

When a user interacts with a Channel Select in a message, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 3, // InteractionType.MESSAGE_COMPONENT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "component_type": 8, // ComponentType.CHANNEL_SELECT
    "id": 2,
    "custom_id": "notification_channel",
    "values": [
      "333333333333333333",
    ],
    "resolved": {
      "channels": {
        "333333333333333333": {
          "flags": 0,
          "guild_id": "44444444444444444",
          "id": "333333333333333333",
          "last_message_id": null,
          "name": "playtesting",
          "nsfw": false,
          "parent_id": "5555555555555555",
          "permissions": "4503599627370495",
          "position": 1,
          "rate_limit_per_user": 0,
          "topic": null,
          "type": 0  // ChannelType.TEXT
        }
      }
    }
  },
}

Modal create payload with a Channel Select component

Example of a modal with a Channel Select

{
  "type": 9,
  "data": {
    "custom_id": "channel_modal",
    "title": "Lockdown",
    "components": [
      {
        "type": 18,
        "label": "Which channel should be locked?",
        "component": {
          "type": 8,
          "custom_id": "channel_selected",
          "required": true
        }
      }
    ]
  }
}

When a user submits a modal containing a Channel Select

When a user submits a modal that contains a Channel Select, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "channel_modal",
    "components": [
      {
        "component": {
          "custom_id": "channel_selected",
          "id": 2,
          "type": 8,
          "values": [
            "1357483683627663450"
          ]
        },
        "id": 1,
        "type": 18
      }
    ],
    "resolved": {
      "channels": {
        "1357483683627663450": {
          "flags": 0,
          "guild_id": "1111111111111111",
          "id": "1357483683627663450",
          "last_message_id": null,
          "name": "playtesting",
          "nsfw": false,
          "parent_id": "1357129309164404938",
          "permissions": "4503599627370495",
          "position": 1,
          "rate_limit_per_user": 0,
          "topic": null,
          "type": 0
        }
      }
    }
  }
}

Section

A Section is a top-level layout component that allows you to contextually associate content with an accessory component. The typical use-case is to contextually associate text content with an accessory. Sections are currently only available in messages.

To use this component in messages you must send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be activated on a per-message basis.

Section Structure

Field	Type	Description
type	integer	`9` for section component
id?	integer	Optional identifier for component
components	array of section child components	One to three child components representing the content of the section that is contextually associated to the accessory
accessory	section accessory component	A component that is contextually associated to the content of the section

Don’t hardcode components to contain only text components. We may add other components in the future. Similarly, accessory may be expanded to include other components in the future.

Section Child Components

Available Components
Text Display

Section Accessory Components

Available Components
Button
Thumbnail

Examples

Message Example

Message create payload with a Section (and Thumbnail) component

Example of a Section showing a fake game changelog and a thumbnail

{
  "flags": 32768,
  "components": [
    {
      "type": 9,  // ComponentType.SECTION
      "components": [
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "# Real Game v7.3"
        },
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "Hope you're excited, the update is finally here! Here are some of the changes:\n- Fixed a bug where certain treasure chests wouldn't open properly\n- Improved server stability during peak hours\n- Added a new type of gravity that will randomly apply when the moon is visible in-game\n- Every third thursday the furniture will scream your darkest secrets to nearby npcs"
        },
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "-# That last one wasn't real, but don't use voice chat near furniture just in case..."
        }
      ],
      "accessory": {
        "type": 11,  // ComponentType.THUMBNAIL
        "media": {
          "url": "https://websitewithopensourceimages/gamepreview.webp"
        }
      }
    }
  ]
}

Text Display

A Text Display is a content component that allows you to add markdown formatted text, including mentions (users, roles, etc) and emojis. The behavior of this component is extremely similar to the content field of a message, but allows you to add multiple text components, controlling the layout of your message. When sent in a message, pingable mentions (@user, @role, etc) present in this component will ping and send notifications based on the value of the allowed mention object set in message.allowed_mentions.

To use this component in messages you must send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be activated on a per-message basis.

Text Display Structure

Field	Type	Description
type	integer	`10` for text display
id?	integer	Optional identifier for component
content	string	Text that will be displayed similar to a message

Text Display Interaction Response Structure

Field	Type	Description
type	integer	`10` for a Text Display
id	integer	Unique identifier for the component

Examples

Message Example

Message create payload with a Text Display component

{
  "flags": 32768,
  "components": [
    {
      "type": 10,  // ComponentType.TEXT_DISPLAY
      "content": "# This is a Text Display\nAll the regular markdown rules apply\n- You can make lists\n- You can use `code blocks`\n- You can use [links](http://watchanimeattheoffice.com/)\n- Even :blush: :star_struck: :exploding_head:\n- Spoiler alert: ||these too!||"
    }
  ]
}

Modal create payload with a Text Display component

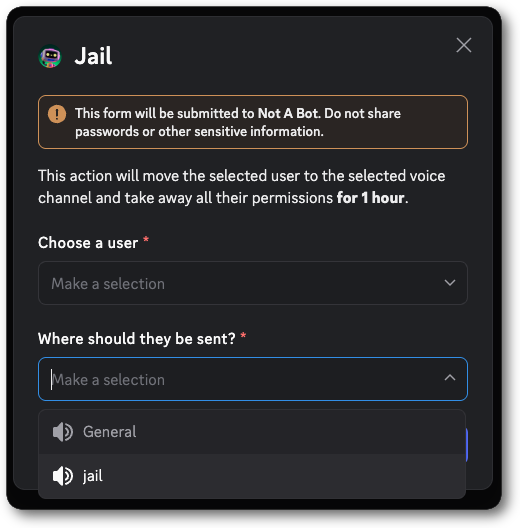

Example of a Text Display from the code below

{
  "type": 9,
  "data": {
    "custom_id": "jail_modal",
    "title": "Jail",
    "components": [
      {
        "type": 10,
        "content": "This action will move the selected user to the selected voice channel and take away all their permissions **for 1 hour**."
      },
      {
        "type": 18,
        "label": "Choose a user",
        "component": {
          "type": 5,
          "custom_id": "user_selected",
          "required": true
        }
      },
      {
        "type": 18,
        "label": "Where should they be sent?",
        "component": {
          "type": 8,
          "custom_id": "channel_selected",
          "channel_types": [
            2
          ],
          "required": true
        }
      }
    ]
  }
}

Thumbnail

A Thumbnail is a content component that displays visual media in a small form-factor. It is intended as an accessory for to other content, and is primarily usable with sections. The media displayed is defined by the unfurled media item structure, which supports both uploaded media and externally hosted media. Thumbnails are currently only available in messages as an accessory in a section. Thumbnails currently only support images, including animated formats like GIF and WEBP. Videos are not supported at this time.

To use this component, you need to send the message flag 1 << 15 (IS_COMPONENTS_V2), which can be activated on a per-message basis.

Thumbnail Structure

Field	Type	Description
type	integer	`11` for thumbnail component
id?	integer	Optional identifier for component
media	unfurled media item	A url or attachment provided as an unfurled media item
description?	?string	Alt text for the media, max 1024 characters
spoiler?	boolean	Whether the thumbnail should be a spoiler (or blurred out). Defaults to `false`

Examples

Message Example

Message create payload with a Thumbnail component (via Section)

Example of a Thumbnail in a Section from the code below

{
  "flags": 32768,
  "components": [
    {
      "type": 9,  // ComponentType.SECTION
      "components": [
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "# Real Game v7.3"
        },
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "Hope you're excited, the update is finally here! Here are some of the changes:\n- Fixed a bug where certain treasure chests wouldn't open properly\n- Improved server stability during peak hours\n- Added a new type of gravity that will randomly apply when the moon is visible in-game\n- Every third thursday the furniture will scream your darkest secrets to nearby npcs"
        },
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "-# That last one wasn't real, but don't use voice chat near furniture just in case..."
        }
      ],
      "accessory": {
        "type": 11,  // ComponentType.THUMBNAIL
        "media": {
          "url": "https://websitewithopensourceimages/gamepreview.webp"
        }
      }
    }
  ]
}

Media Gallery

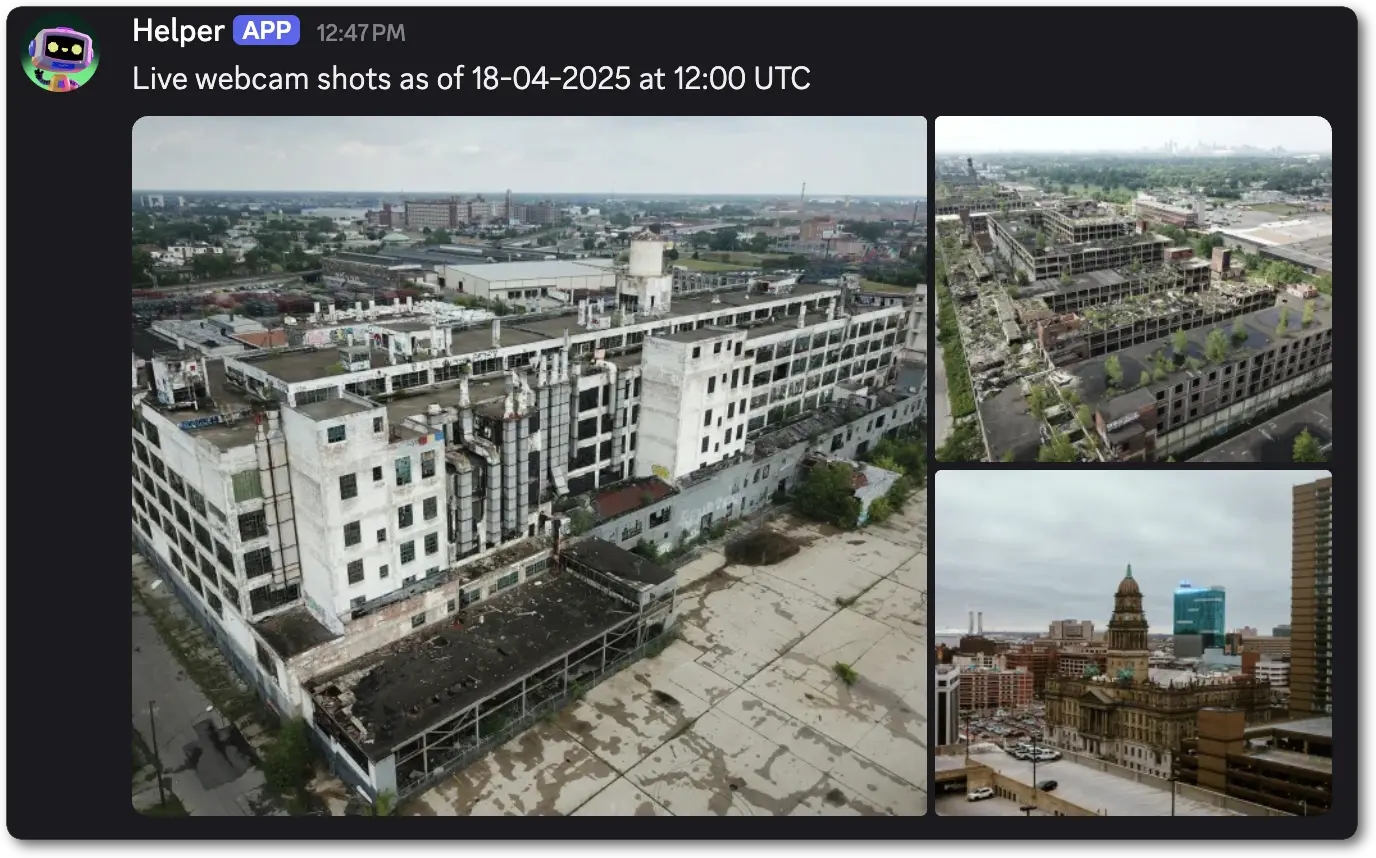

A Media Gallery is a top-level content component that allows you to display 1-10 media attachments in an organized gallery format. Each item can have optional descriptions and can be marked as spoilers. Media Galleries are currently only available in messages.

To use this component in messages you must send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be activated on a per-message basis.

Media Gallery Structure

Field	Type	Description
type	integer	`12` for media gallery component
id?	integer	Optional identifier for component
items	array of media gallery items	1 to 10 media gallery items

Media Gallery Item Structure

Field	Type	Description
media	unfurled media item	A url or attachment provided as an unfurled media item
description?	?string	Alt text for the media, max 1024 characters
spoiler?	boolean	Whether the media should be a spoiler (or blurred out). Defaults to `false`

Examples

Message Example

Message create payload with a Media Gallery component

Example of a Media Gallery showing screenshots from live webcam feeds

{
  "flags": 32768,
  "components": [
    {
      "type": 10,  // ComponentType.TEXT_DISPLAY
      "content": "Live webcam shots as of 18-04-2025 at 12:00 UTC"
    },
    {
      "type": 12,  // ComponentType.MEDIA_GALLERY
      "items": [
        {
          "media": {"url": "https://livevideofeedconvertedtoimage/webcam1.webp"},
          "description": "An aerial view looking down on older industrial complex buildings. The main building is white with many windows and pipes running up the walls."
        },
        {
          "media": {"url": "https://livevideofeedconvertedtoimage/webcam2.webp"},
          "description": "An aerial view of old broken buildings. Nature has begun to take root in the rooftops. A portion of the middle building's roof has collapsed inward. In the distant haze you can make out a far away city."
        },
        {
          "media": {"url": "https://livevideofeedconvertedtoimage/webcam3.webp"},
          "description": "A street view of a downtown city. Prominently in photo are skyscrapers and a domed building"
        }
      ]
    }
  ]
}

File

A File is a top-level content component that allows you to display an uploaded file as an attachment to the message and reference it in the component. Each file component can only display 1 attached file, but you can upload multiple files and add them to different file components within your payload. Files are currently only available in messages.

The File component only supports using the attachment:// protocol in unfurled media item

To use this component in messages you must send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be activated on a per-message basis.

File Structure

Field	Type	Description
type	integer	`13` for a file component
id?	integer	Optional identifier for component
file	unfurled media item	This unfurled media item is unique in that it only supports attachment references using the `attachment://<filename>` syntax
spoiler?	boolean	Whether the media should be a spoiler (or blurred out). Defaults to `false`
name?	string	The name of the file. This field is ignored and provided by the API as part of the response
size?	integer	The size of the file in bytes. This field is ignored and provided by the API as part of the response

Examples

Message Example

Message create payload with a File component

Example of a File showing a download for a game and manual

This example makes use of the attachment:// protocol functionality in unfurled media item.

{
  "flags": 32768,
  "components": [
    {
      "type": 10,  // ComponentType.TEXT_DISPLAY
      "content": "# New game version released for testing!\nGrab the game here:"
    },
    {
      "type": 13,  // ComponentType.FILE
      "file": {
        "url": "attachment://game.zip"
      }
    },
    {
      "type": 10,  // ComponentType.TEXT_DISPLAY
      "content": "Latest manual artwork here:"
    },
    {
      "type": 13,  // ComponentType.FILE
      "file": {
        "url": "attachment://manual.pdf"
      }
    }
  ]
}

Separator

A Separator is a top-level layout component that adds vertical padding and visual division between other components. Separators are currently only available in messages.

To use this component in messages you must send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be activated on a per-message basis.

Separator Structure

Field	Type	Description
type	integer	`14` for separator component
id?	integer	Optional identifier for component
divider?	boolean	Whether a visual divider should be displayed in the component. Defaults to `true`
spacing?	integer	Size of separator padding—`1` for small padding, `2` for large padding. Defaults to `1`

Examples

Message Example

Message create payload with a Separator component

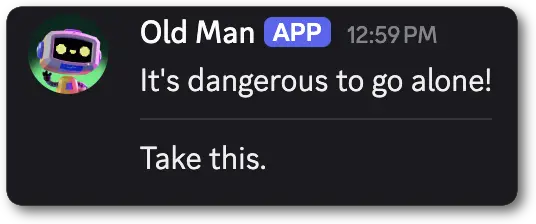

Example of a separator with large spacing dividing content

{
  "flags": 32768,
  "components": [
    {
      "type": 10,  // ComponentType.TEXT_DISPLAY
      "content": "It's dangerous to go alone!"
    },
    {
      "type": 14,  // ComponentType.SEPARATOR
      "divider": true,
      "spacing": 1
    },
    {
      "type": 10,  // ComponentType.TEXT_DISPLAY
      "content": "Take this."
    }
  ]
}

Container

A Container is a top-level layout component. Containers offer the ability to visually encapsulate a collection of components and have an optional customizable accent color bar. Containers are currently only available in messages.

To use this component in messages you must send the message flag 1 << 15 (IS_COMPONENTS_V2) which can be activated on a per-message basis.

Container Structure

Field	Type	Description
type	integer	`17` for container component
id?	integer	Optional identifier for component
components	array of container child components	Child components that are encapsulated within the Container
accent_color?	?integer	Color for the accent on the container as RGB from `0x000000` to `0xFFFFFF`
spoiler?	boolean	Whether the container should be a spoiler (or blurred out). Defaults to `false`.

Container Child Components

Available Components
Action Row
Text Display
Section
Media Gallery
Separator
File

Examples

Message Example

Message create payload with a Container component

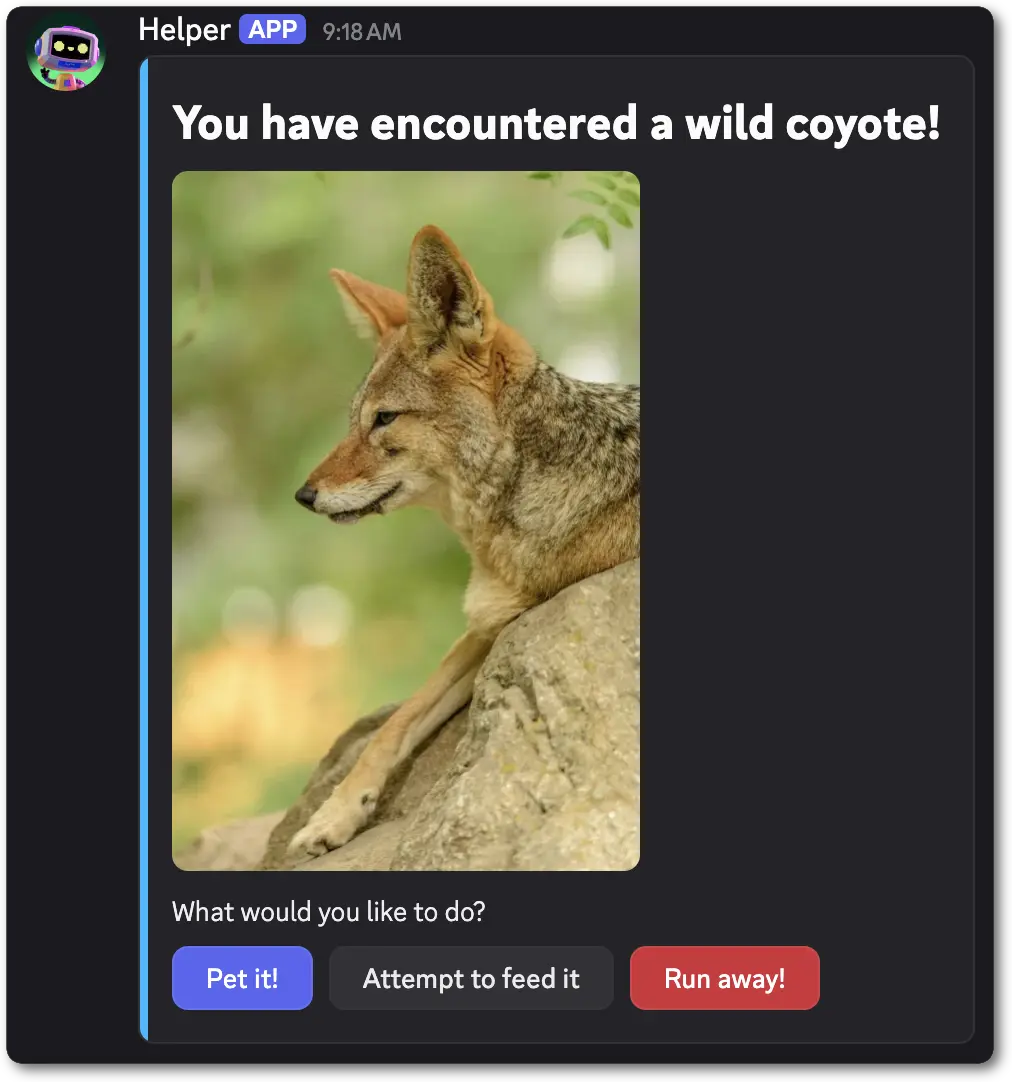

Example of a container showing text, image, and buttons for a wild enemy encounter

{
  "flags": 32768,
  "components": [
    {
      "type": 17,  // ComponentType.CONTAINER
      "accent_color": 703487,
      "components": [
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "# You have encountered a wild coyote!"
        },
        {
          "type": 12,  // ComponentType.MEDIA_GALLERY
          "items": [
            {
              "media": {"url": "https://websitewithopensourceimages/coyote.webp"},
            }
          ]
        },
        {
          "type": 10,  // ComponentType.TEXT_DISPLAY
          "content": "What would you like to do?"
        },
        {
          "type": 1,  // ComponentType.ACTION_ROW
          "components": [
            {
              "type": 2,  // ComponentType.BUTTON
              "custom_id": "pet_coyote",
              "label": "Pet it!",
              "style": 1
            },
            {
              "type": 2,  // ComponentType.BUTTON
              "custom_id": "feed_coyote",
              "label": "Attempt to feed it",
              "style": 2
            },
            {
              "type": 2,  // ComponentType.BUTTON
              "custom_id": "run_away",
              "label": "Run away!",
              "style": 4
            }
          ]
        }
      ]
    }
  ]
}

Label

A Label is a top-level layout component. Labels wrap modal components with text as a label and optional description.

The description may display above or below the component depending on the platform.

Label Structure

Field	Type	Description
type	integer	`18` for a label
id?	integer	Optional identifier for component
label	string	The label text; max 45 characters
description?	string	An optional description text for the label; max 100 characters
component	label child component	The component within the label

Label Child Components

Available Components
Text Input
String Select
User Select
Role Select
Mentionable Select
Channel Select
File Upload
Radio Group
Checkbox Group
Checkbox

Label Interaction Response Structure

Field	Type	Description
type	integer	`18` for a Label
id	integer	Unique identifier for the component
component	label interaction response child component	The component within the label

Label Interaction Response Child Components

Available Components
Text Input
String Select
User Select
Role Select
Mentionable Select
Channel Select
File Upload
Radio Group
Checkbox Group
Checkbox

Examples

Modal create payload with a Label component (wrapping a Text Input)

{
  "type": 9, // InteractionCallbackType.MODAL
  "data": {
    "custom_id": "game_feedback_modal",
    "title": "Game Feedback",
    "components": [
      {
        "type": 18,  // ComponentType.LABEL
        "label": "What did you find interesting about the game?",
        "description": "Please give us as much detail as possible so we can improve the game!",
        "component": {
          "type": 4,  // ComponentType.TEXT_INPUT
          "custom_id": "game_feedback",
          "style": 2,
          "min_length": 100,
          "max_length": 4000,
          "placeholder": "Write your feedback here...",
          "required": true
        }
      }
    ]
  }
}

File Upload

File Upload is an interactive component that allows users to upload files in modals. File Uploads can be configured to have a minimum and maximum number of files between 0 and 10, along with required for if the upload is required to submit the modal. The max file size a user can upload is based on the user’s upload limit in that channel. File Uploads are available on modals. They must be placed inside a Label.

File Upload Structure

Field	Type	Description
type	integer	`19` for file upload
id?	integer	Optional identifier for component
custom_id	string	ID for the file upload; 1-100 characters
min_values?*	integer	Minimum number of items that must be uploaded (defaults to 1); min 0 (see note), max 10
max_values?	integer	Maximum number of items that can be uploaded (defaults to 1); max 10
required?	boolean	Whether the file upload requires files to be uploaded before submitting the modal (defaults to `true`)

* min_values must be either omitted or at least 1 if required is omitted or true.

File Upload Interaction Response Structure

Field	Type	Description
type	integer	`19` for a File Upload
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
values	array of snowflakes	IDs of the uploaded files found in the resolved data

Examples

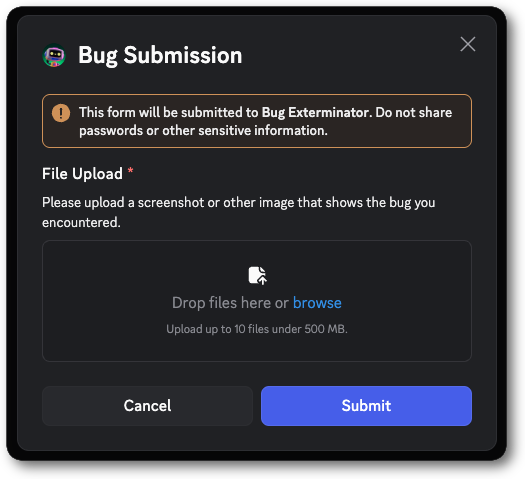

Modal create payload with a File Upload component

{
  "type": 9,
  "data": {
    "custom_id": "bug_submit_modal",
    "title": "Bug Submission",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "label": "File Upload",
        "description": "Please upload a screenshot or other image that shows the bug you encountered.",
        "component": {
          "type": 19, // ComponentType.FILE_UPLOAD
          "custom_id": "file_upload",
          "min_values": 1,
          "max_values": 10,
          "required": true
        }
      }
    ]
  }
}

When a user submits a modal containing a File Upload

When a user submits a modal that contains a File Upload, this is the basic form of the interaction data payload you will receive. The full payload is available in the interaction reference.

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "components": [
      {
          "component": {
              "custom_id": "file_upload",
              "id": 2,
              "type": 19,
              "values": [
                  "111111111111111111111"
              ]
          },
          "id": 1,
          "type": 18
      }
    ],
    "custom_id": "bug_submit_modal",
    "resolved": {
      "attachments": {
        "111111111111111111111": {
            "content_type": "image/png",
            "ephemeral": true,
            "filename": "bug.png",
            "height": 604,
            "id": "111111111111111111111",
            "placeholder": "/PcBAoBQydvKesabEIoMsdg=",
            "placeholder_version": 1,
            "proxy_url": "https://media.discordapp.net/ephemeral-attachments/2222222222222222222/111111111111111111111/bug.png?ex=68dc7ce1&is=68db2b61&hm=5954f90117ccf8716ffa6c7f97a778a0d039810c9584045f400d8a9fff590768&",
            "size": 241394,
            "url": "https://cdn.discordapp.com/ephemeral-attachments/2222222222222222222/111111111111111111111/bug.png?ex=68dc7ce1&is=68db2b61&hm=5954f90117ccf8716ffa6c7f97a778a0d039810c9584045f400d8a9fff590768&",
            "width": 2482
        }
      }
    }
  }
}

Radio Group

A Radio Group is an interactive component for selecting exactly one option from a defined list. Radio Groups are available in modals and must be placed inside a Label.

Radio Group Structure

Field	Type	Description
type	integer	`21` for radio group
id?	integer	Optional identifier for component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
options	array of radio group options	List of options to show; min 2, max 10
required?	boolean	Whether a selection is required to submit the modal (defaults to `true`)

Radio Group Option Structure

Field	Type	Description
value	string	Dev-defined value of the option; max 100 characters
label	string	User-facing label of the option; max 100 characters
description?	string	Optional description for the option; max 100 characters
default?	boolean	Shows the option as selected by default

Radio Group Interaction Response Structure

Field	Type	Description
type	integer	`21` for a Radio Group
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
value	?string	The value of the selected option, or `null` if no option is selected

Examples

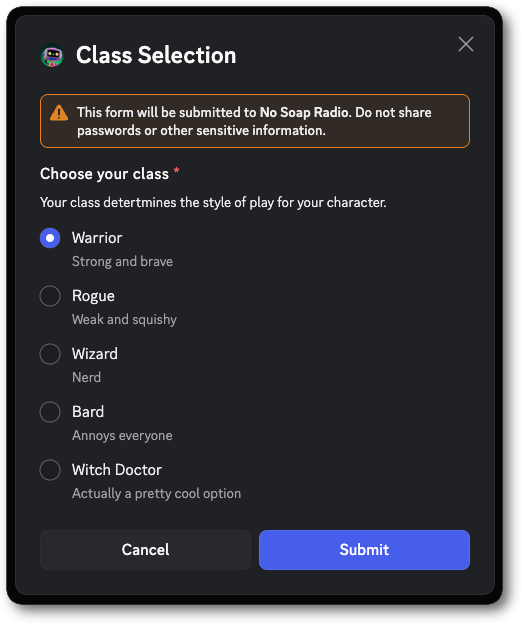

Modal create payload with a Radio Group component

{
  "type": 9,
  "data": {
    "custom_id": "class_selection_modal",
    "title": "Class Selection",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "label": "Choose your class",
        "description": "Your class detertmines the style of play for your character.",
        "component": {
          "type": 21, // ComponentType.RADIO_GROUP
          "custom_id": "class_radio",
          "options": [
            {"value": "warrior", "label": "Warrior", "description": "Strong and brave"},
            {"value": "rogue", "label": "Rogue", "description": "Weak and squishy"},
            {"value": "wizard", "label": "Wizard", "description": "Nerd"},
            {"value": "bard", "label": "Bard", "description": "Annoys everyone"},
            {"value": "witch_doctor", "label": "Witch Doctor", "description": "Actually a pretty cool option"}
          ]
        }
      }
    ]
  }
}

When a user submits a modal containing a Radio Group

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "class_selection_modal",
    "components": [
      {
        "id": 1,
        "type": 18, // ComponentType.LABEL
        "component": {
          "custom_id": "class_radio",
          "id": 2,
          "type": 21, // ComponentType.RADIO_GROUP
          "value": "warrior"
        }
      }
    ]
  }
}

Checkbox Group

A Checkbox Group is an interactive component for selecting one or many options via checkboxes. Checkbox Groups are available in modals and must be placed inside a Label.

Checkbox Group Structure

Field	Type	Description
type	integer	`22` for checkbox group
id?	integer	Optional identifier for component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
options	array of checkbox group options	List of options to show; min 1, max 10
min_values?*	integer	Minimum number of items that must be chosen; min 0, max 10 (defaults to 1);
max_values?	integer	Maximum number of items that can be chosen; min 1, max 10 (defaults to the number of options)
required?	boolean	Whether selecting within the group is required (defaults to `true`)

* min_values must be either omitted or at least 1 if required is omitted or true.

Checkbox Group Option Structure

Field	Type	Description
value	string	Dev-defined value of the option; max 100 characters
label	string	User-facing label of the option; max 100 characters
description?	string	Optional description for the option; max 100 characters
default?	boolean	Shows the option as selected by default

Checkbox Group Interaction Response Structure

Field	Type	Description
type	integer	`22` for a Checkbox Group
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
values	array of strings	The values of the selected options, or an empty array `[]` if no options are selected

Examples

Modal create payload with a Checkbox Group component

Example of a modal with a Checkbox Group

{
  "type": 9,
  "data": {
    "custom_id": "day_selection_modal",
    "title": "Study Days",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "label": "Which days are you free?",
        "description": "Choose all of the days you're able to meet up.",
        "component": {
          "type": 22, // ComponentType.CHECKBOX_GROUP
          "custom_id": "event_checkbox",
          "options": [
            {"value": "march-4", "label": "March 4th"},
            {"value": "march-5", "label": "March 5th"},
            {"value": "march-7", "label": "March 7th", "description": "I know this is a Saturday and is tough"},
            {"value": "march-9", "label": "March 9th"},
            {"value": "march-10", "label": "March 10th"}
          ]
        }
      }
    ]
  }
}

When a user submits a modal containing a Checkbox Group

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "day_selection_modal",
    "components": [
      {
        "id": 1,
        "type": 18, // ComponentType.LABEL
        "component": {
          "custom_id": "event_checkbox",
          "id": 2,
          "type": 22, // ComponentType.CHECKBOX_GROUP
          "values": [
            "march-5",
            "march-10",
            "march-4"
          ]
        }
      }
    ]
  }
}

Checkbox

A Checkbox is a single interactive component for simple yes/no style questions. Checkboxes are available in modals and must be placed inside a Label.

Checkbox Structure

Field	Type	Description
type	integer	`23` for checkbox
id?	integer	Optional identifier for component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
default?	boolean	Whether the checkbox is selected by default

While you can’t set a checkbox as required, you can use a Checkbox Group with a single option and required to achieve similar functionality.

Checkbox Interaction Response Structure

Field	Type	Description
type	integer	`23` for a Checkbox
id	integer	Unique identifier for the component
custom_id	string	Developer-defined identifier for the input; 1-100 characters
value	boolean	The state of the checkbox (`true` if checked, `false` if unchecked)

Examples

Modal create payload with a Checkbox component

{
  "type": 9,
  "data": {
    "custom_id": "secret_note_modal",
    "title": "Secret Note",
    "components": [
      {
        "type": 18, // ComponentType.LABEL
        "label": "Do you like me?",
        "description": "😳😳😳",
        "component": {
          "type": 23, // ComponentType.CHECKBOX
          "custom_id": "like_checkbox"
        }
      }
    ]
  }
}

When a user submits a modal containing a Checkbox

{
  "type": 5, // InteractionType.MODAL_SUBMIT
  ...additionalInteractionFields, // See the Interaction documentation for all fields

  "data": {
    "custom_id": "secret_note_modal",
    "components": [
      {
        "id": 1,
        "type": 18, // ComponentType.LABEL
        "component": {
          "custom_id": "like_checkbox",
          "id": 2,
          "type": 23, // ComponentType.CHECKBOX
          "value": true
        }
      }
    ]
  }
}

Unfurled Media Item

An Unfurled Media Item is a piece of media, represented by a URL, that is used within a component. It can be constructed via either uploading media to Discord, or by referencing external media via a direct link to the asset.

While the structure below is the full representation of an Unfurled Media Item, only the url field is settable by developers when making requests that utilize this structure.All other fields will be automatically populated by Discord.

Unfurled Media Item Structure

Field	Type	Description
url	string	Supports arbitrary urls and `attachment://<filename>` references
proxy_url? *	string	The proxied url of the media item
height? *	?integer	The height of the media item (if image or video)
width? *	?integer	The width of the media item (if image or video)
placeholder? *	string	Thumbhash placeholder (if image or video)
placeholder_version? *	integer	Version of the placeholder (if image or video)
content_type? *	string	The media type of the content
flags? *	integer	Unfurled media item flags combined as a bitfield
attachment_id? * **	snowflake	The id of the uploaded attachment

* This field is ignored and provided by the API as part of the response. ** Only present if the media item was uploaded as an attachment.

Unfurled Media Item Flags

Flag	Value	Description
IS_ANIMATED	`1 << 0`	This image is animated

Uploading a file

To upload a file with your message, you’ll need to send your payload as multipart/form-data (rather than application/json) and include your file with a valid filename in your payload. Details and examples for uploading files can be found in the API Reference.

Legacy Message Component Behavior

Before the introduction of the IS_COMPONENTS_V2 flag (see changelog), message components were sent in conjunction with message content. This means that you could send a message using a subset of the available components without setting the IS_COMPONENTS_V2 flag, and the components would be included in the message content along with content and embeds. Additionally, components of messages preceding components V2 will contain an id of 0. Apps using this Legacy Message Component behavior will continue to work as expected, but it is recommended to use the new IS_COMPONENTS_V2 flag for new apps or features as they offer more options for layout and customization.

Legacy messages allow up to 5 action rows as top-level components

Legacy Message Component Example

{
  "content": "This is a message with legacy components",
  "components": [
    {
      "type": 1,
      "components": [
        {
          "type": 2,
          "style": 1,
          "label": "Click Me",
          "custom_id": "click_me_1"
        }
      ]
    }
  ]
}

​What is a Component

​Component Object

Component Types

​Anatomy of a Component

Custom ID

​Action Row

Action Row Structure

Action Row Child Components

Examples

​Button

Button Structure

Button Styles

Examples

​Button Design Guidelines

General Button Content

Multiple Buttons

Premium Buttons

​String Select

String Select Structure

Select Option Structure

String Select Interaction Response Structure

Examples

​Text Input

Text Input Structure

Text Input Styles

Text Input Interaction Response Structure

Examples

​User Select

User Select Structure

Select Default Value Structure

User Select Interaction Response Structure

Examples

​Role Select

Role Select Structure

Role Select Interaction Response Structure

Examples

​Mentionable Select

Mentionable Select Structure

Mentionable Select Interaction Response Structure

Examples

​Channel Select

Channel Select Structure

Channel Select Interaction Response Structure

Examples

​Section

Section Structure

Section Child Components

Section Accessory Components

Examples

​Text Display

Text Display Structure

Text Display Interaction Response Structure

Examples

​Thumbnail

Thumbnail Structure

Examples

​Media Gallery

Media Gallery Structure

Media Gallery Item Structure

Examples

​File

File Structure

Examples

​Separator

Separator Structure

Examples

​Container

Container Structure

Container Child Components

Examples

​Label

Label Structure

Label Child Components

Label Interaction Response Structure

Label Interaction Response Child Components

Examples

​File Upload

File Upload Structure

File Upload Interaction Response Structure

Examples

What is a Component

Component Object

Anatomy of a Component

Action Row

Button

Button Design Guidelines

String Select

Text Input

User Select

Role Select

Mentionable Select

Channel Select

Section

Text Display

Thumbnail

Media Gallery

File

Separator

Container

Label

File Upload

Radio Group

Radio Group Structure

Radio Group Option Structure

Radio Group Interaction Response Structure

Examples

Checkbox Group

Checkbox Group Structure

Checkbox Group Option Structure

Checkbox Group Interaction Response Structure

Examples

Checkbox

Checkbox Structure

Checkbox Interaction Response Structure

Examples

Unfurled Media Item

Uploading a file

Legacy Message Component Behavior
